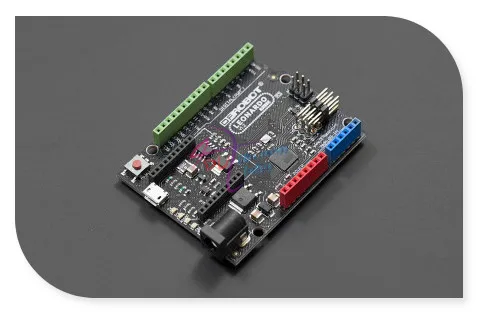

DFRobot 100% Genuine Leonardo low-cost main controller V1.2 ATmega32u4 5-12V with Xbee R3 socket Compatible with Arduino Leonardo Introduction

  • DFRobot Leonardo with Xbee socket is an Ar-duino Leonardo variant processor.The Leonardo is based on the ATmega32u4 chip. It is the latest addition to the Ar-duino family. Compared with the earlier Ar-duino controllers,by using the ATmega32U4 as its sole microcontroller, allows the Leonardo to be cheaper and simpler to use. Also, because the 32U4 is handling the USB directly, code libraries are available which allow the board to emulate a computer keyboard, mouse, and more using the USB-HID protocol!
  • Based on the Ar-duino official Leonardo processor,this one from DFRobot equips an xbee socket and 3 sensor extension pins for your application. The Xbee is commonly used wireless communication module with 2.4G Zigbee,900Mhz version,and etc.The socket makes it possible for you to extend the xbee or XBee form factor wifi, bluetooth and RF modules for your Leonardo directly. However,the D14~D16 extension pins with power supply maximize the use of your ATmega32u4 microcontroller. They support the digital sensors and module from DFRobot directly.
  • Notics: This board is only supported in the latest for Arduino IDE 1.0.1 or later version so you will also need to update the IDE.

Specification

  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-12V
  • Microcontroller:ATmega32u4
  • Operating Voltage: 5V
  • Interface: Micro USB
  • Compatible with Arduino R3 series pin mapping
  • Directly support Xbee and XBee form factor wifi,bluetooth and RF modules
  • Extend D14~D16 digital pins with 5v power supply
  • Clock Speed 16 MHz
  • Size: 70x55x14mm
  • Microcontroller Specification
  • Digital I/O Pins: 20
  • PWM Channels: 7
  • Analog Input Channels: 12
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 800 mA
  • Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM: 2.5 KB (ATmega32u4)
  • EEPROM: 1 KB (ATmega32u4)

Photos

Applications

Shipping List

  • DFRobot Leonardo with Xbee R3 socket x1
